  • Packing Box
  • System Soft Carrying Case
  • Helmet/ Head Mount Adapter
  • Head Mount Assembly
  • Neck Lanyard
  • Operators Manual
  • Batteries
  • Demist Shield
  • Sacrificial Window
  • Lens Tissue

PVS14NL1

AGM PVS-14 NL1 - Product Description

AGM PVS-14 Night Vision Monocular

Description And Features

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. Weighing less than 12.4 ounces / 350 grams, the unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS-14 includes an array of optional accessories to support virtually any operation. :contentReference[oaicite:1]{index=1}

Warning: California's Proposition 65

  • Compact, rugged design
  • Waterproof

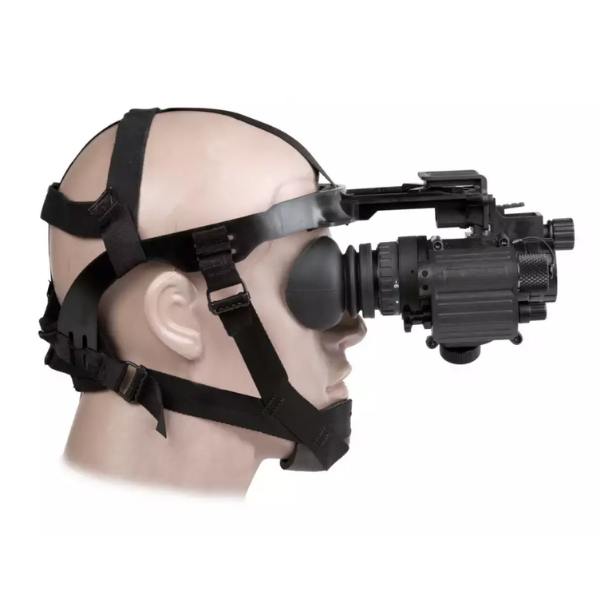

  • Head or helmet-mountable for hands-free usage
  • Manual gain control
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • 3-Year warranty

Specifications

Image Intensifier Tube Gen 2+ "Level 1"
Resolution 51-64 lp/mm
Field of view cleanness by zone Gen 2 IIT NL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification 1x (3x and 5x optional)
Lens System 27 mm; F/1.2
FOV 40°
Focus Range 0.25 m to infinity
Diopter Adjustment -6 to +2 dpt
LED Indicators Low battery; IR On; Excessive light conditions
Infrared Illuminator Yes
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes

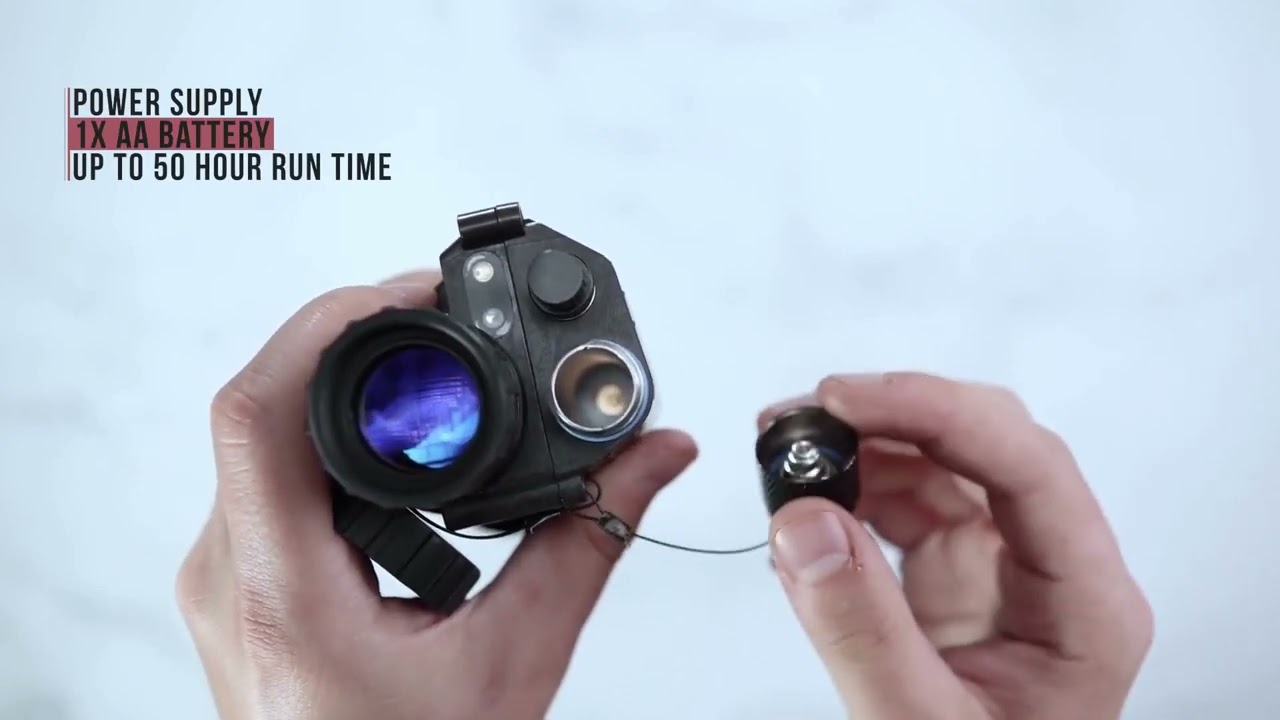

Battery Type One AA Alkaline
Battery Life (Operating) Up to 40 hours at 20°C
Operating Temperature Range -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range -51° C to +85° C (-60° F to 185° F)
Weight 0.35 kg (12.4 oz)
Overall Dimensions 114 x 63 x 69 mm (4.5 x 2.5 x 2.7 in)
