- Image Intensifier Tube: Gen 2+ "Level 1"
- Magnification: 1x
- Lens System: 27 mm, F/1.2
- FOV: 40°
AGM WOLF-7 PRO NW1
Description And Features

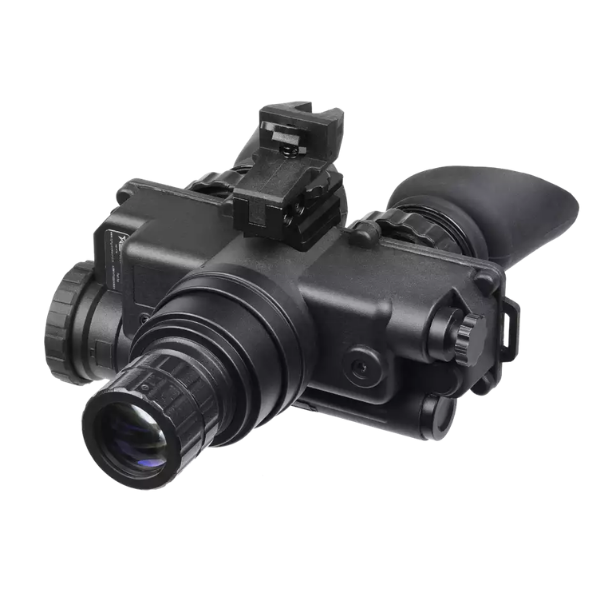

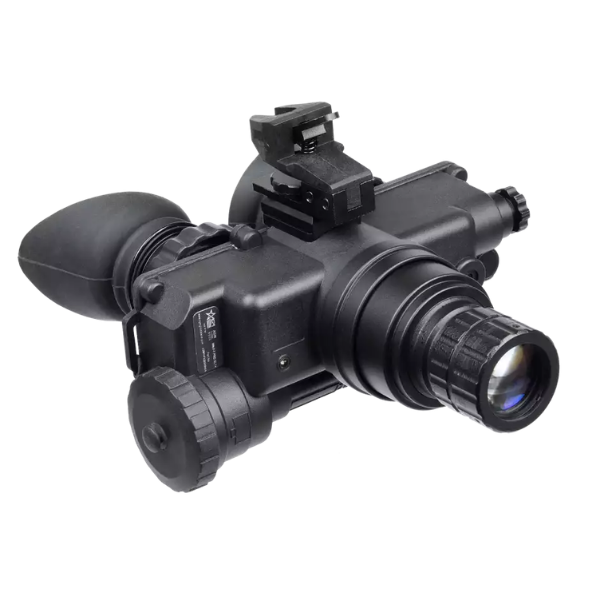

The AGM Wolf-7 PRO is a bi-ocular Night Vision goggle system built around high-grade image intensifier tubes. They are an exceptional choice for hands-free use. Built with high-grade optics and simple, reliable electronics, the Wolf-7 PRO provides bright and clear night vision images, even in the most trying conditions. This unit includes a built-in IR light source for reading maps or basic, short-range illumination in complete darkness.
The AGM Wolf-7 PRO is available with a variety of accessories such as 8X magnification lenses for long-range viewing, head or helmet mounts for hands-free operation, and additional, high powered IR illuminators for long-range use. Waterproof, rugged, light, and compact, the Wolf-7 PRO is the perfect hands-free unit for a variety of tough operations.
- Compact, rugged design
- Waterproof

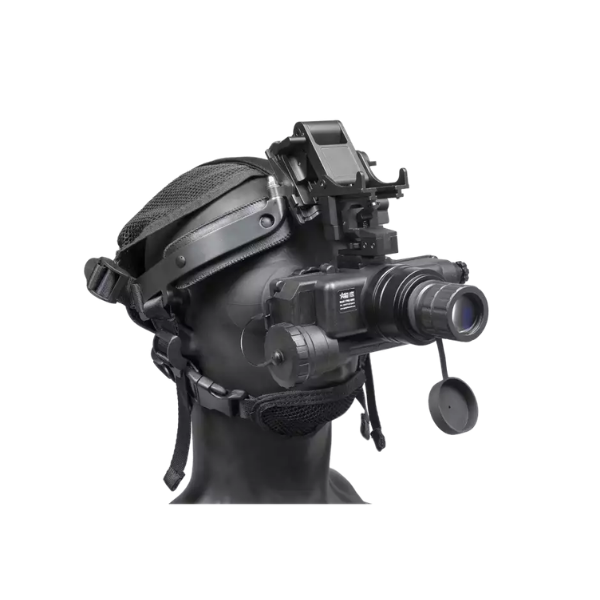

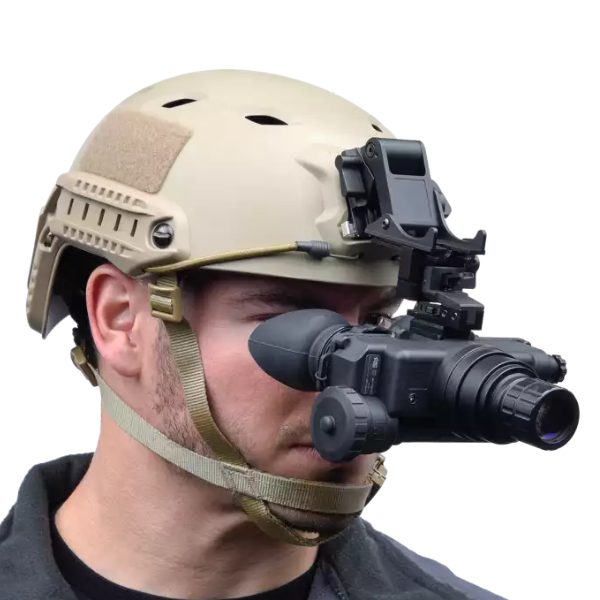

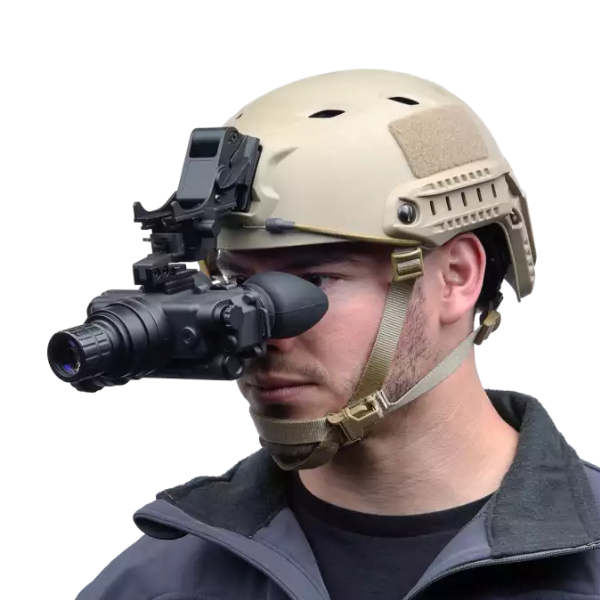

- Head or helmet-mountable for hands-free operation
- Ergonomic, simple, easy-to-operate controls
- Highlight overload protection
- Built-in Infrared illuminator
- External power supply capability
- 3-Year warranty
Specifications
| Interpupillary Distance | 57 to 73 mm |
|---|---|
| External Power Supply | Yes (2.8-4.2V) |
| Image Intensifier Tube | Gen 2+ |
| Resolution | 45-54 lp/mm |
| Field of view cleanness by zone | Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1. |
| Magnification | 1x |
| Lens System | 27 mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.25 m to infinity |
| Eye Relief | 15 mm |
| Diopter Adjustment | -4 to +5 diopters |
| LED Indicators | Low Battery; IR On |
| Automatic Brightness Control | Yes |
| Infrared Illuminator | Yes |
| Battery Type | Two AA Alkaline |
| Battery Life (Operating) | Up to 40 hrs (IR off); Up to 30 hrs (IR on) |
| Waterproof | Yes |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
| Weight | 510 g (1.1 lb) |
| Overall Dimensions | 183 × 132 × 58 mm (7.2 × 5.2 × 2.3 in) |
