SKU: 77481
Main specifications
Sensor | 1024x768 pix. @ 12 µm (NETD <40 mK) |
Objective lens | F50/1.2 |
Magnification | 2.5-20 (8x zoom) |
Field of view (HxV) | degrees / m@100m 14x10.5/24.6x18.5 |
Detection range | 2300m |
Frame rate | 50Hz |

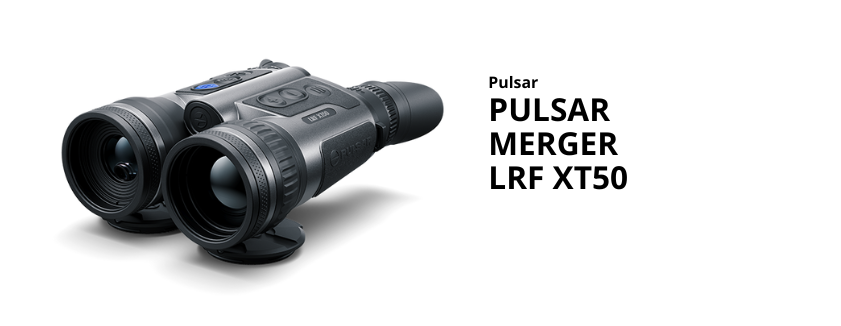

The Merger LRF represents our classic thermal imaging binocular design with an integrated laser rangefinder.
These binoculars are remarkably ergonomic and comfortable. They allow for two-eye observation and reduce eye fatigue. They are equipped with top-tier components that exemplify European quality.
The Merger LRF series offers a wide range of European-made sensors tailored to various user needs:
SKU: 77481
Main specifications
Sensor | 1024x768 pix. @ 12 µm (NETD <40 mK) |
Objective lens | F50/1.2 |
Magnification | 2.5-20 (8x zoom) |
Field of view (HxV) | degrees / m@100m 14x10.5/24.6x18.5 |
Detection range | 2300m |
Frame rate | 50Hz |
SKU: 77481
Main specifications
Sensor | 640x480 @ 17 µm (NETD < 25 mK) |
Objective lens | F35 / 1.0 |
Magnification | 2 – 16 |
Field of view (HxV) | 17.8 |
Detection range | 1350 m |
Frame rate | 50Hz |
SKU: 77455
Main specifications
Sensor | 640x480 pix. @ 17 µm (thermal) | CMOS 1920x1200 (digital) |
Objective lens | F50/1.0 (thermal) | F50/1.4 (digital) |
Magnification | 3 – 24 (thermal) | 2 – 16 (digital) |
Field of view (HxV) | degrees / m@100m :12.4°/ 21.8 m (thermal) | 17.5°/ 30.7 m(digital) |
Detection range | 1800 (thermal detection) |
SKU:77431
Main specifications
Sensor | 384x288pix. @ 17 µm (NETD <25 mK) |
Objective lens | F35/1.0 |
Magnification | 3 -12 (x4 zoom) |
Field of view (HxV) | degrees / m@100m:10.7x8/18.7x14 |
Detection range | 1350m |
Frame rate | 50Hz |
SKU:77465
Main specifications
Sensor | 640x480 @ 17 µm (NETD <25 mK) |
Objective lens | F50/1.0 |
Magnification | 2.5 – 20 (x8 zoom) |
Field of view (HxV) | degrees / m@100m:12.4x9.3 / 21.8x16.3 |
Detection range | 1800m |
Frame rate | 50Hz |
