PVS-14
Night Vision Goggles

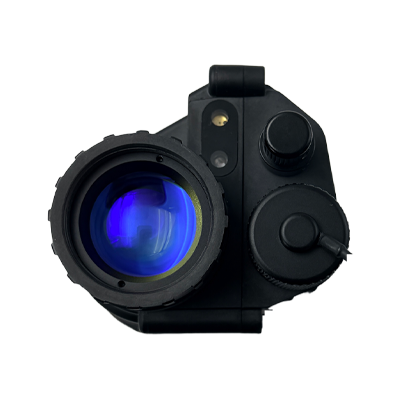

The PVS-14 is a versatile night vision monocular designed for handheld observation or hands-free use with compatible head and helmet mounts. Its single-eye design lets users view their surroundings through the device while keeping the other eye available for natural vision, offering flexible use for nighttime navigation and outdoor observation.

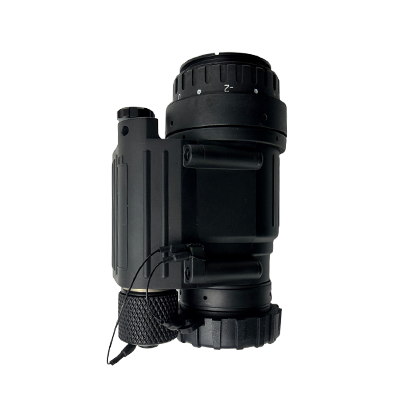

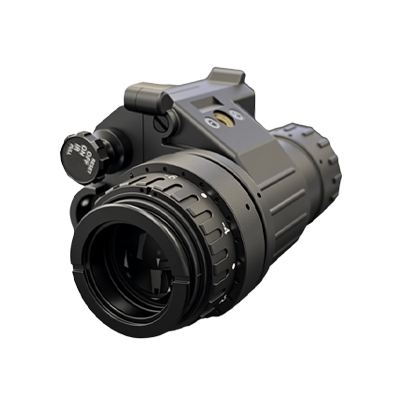

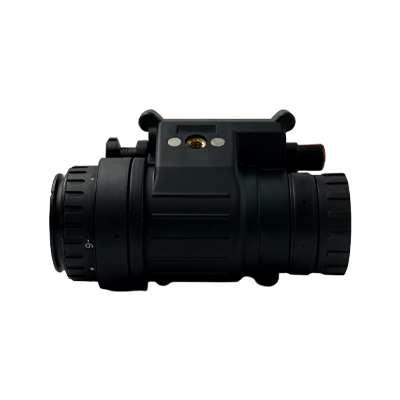

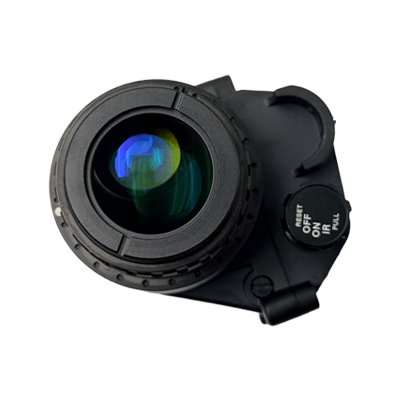

Device & Setup Views

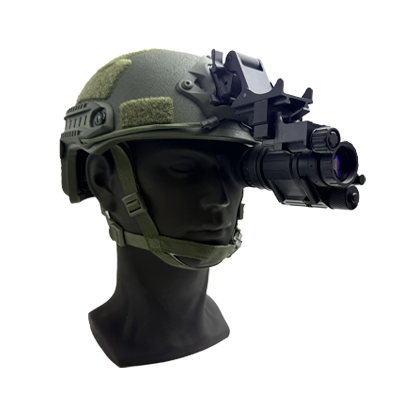

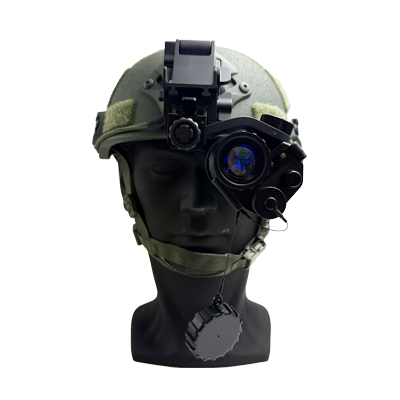

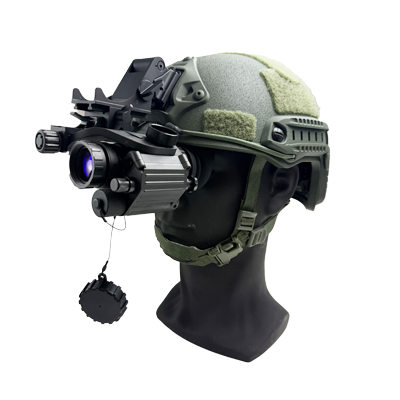

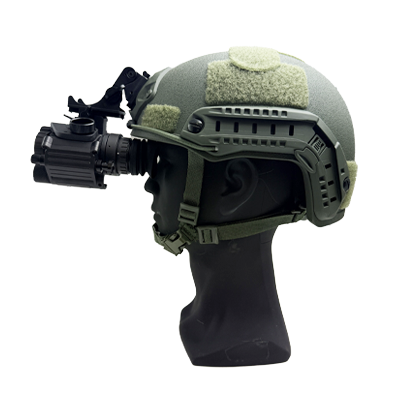

Explore the PVS-14 helmet-mounted setup from multiple angles, including front and side views.
Setup images illustrate mounting configurations. Confirm compatible mounts, helmet accessories, and package contents when ordering.
Technical Data
| Optical System | Magnification | 1× (3× lens configuration) |
|---|---|---|
| Objective Lens | F/1.2 | |
| Field of View | 40° | |
| Focus Range | 25 cm to infinity | |
| Eyepiece | Diopter Adjustment | −6 to +2 D |
| Eye Relief | 25 mm | |
| Gain Control | Adjustment | Manual, via control knob |
| Power Supply | Battery Type | 1 × AA battery |
| Battery Life | 40+ hours | |
| Physical | Weight | 290 g (without battery) |
| Dimensions | 109 × 58 × 74 mm | |
| Optical & Image Intensifier Options | Optical Compatibility | Carson and RPO 3.0 optical components |
| Image Intensifier FOM Options | 1,400–2,400+ |

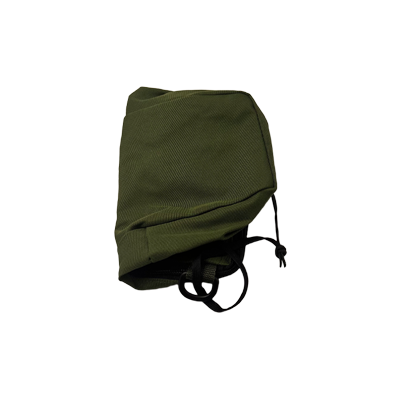

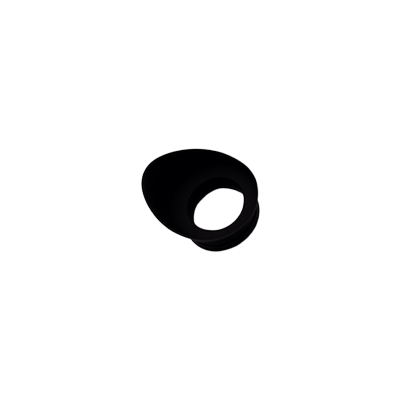

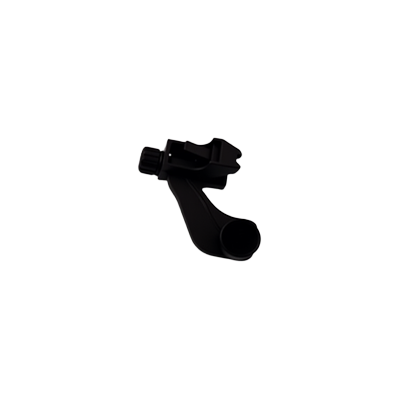

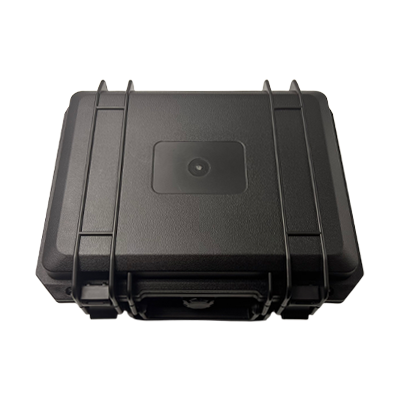

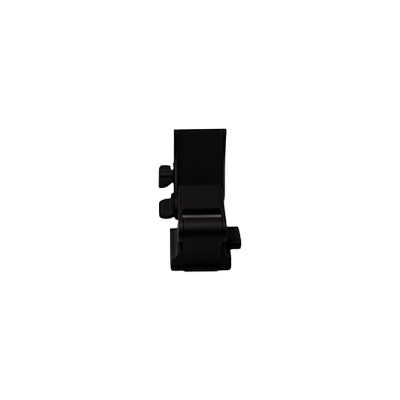

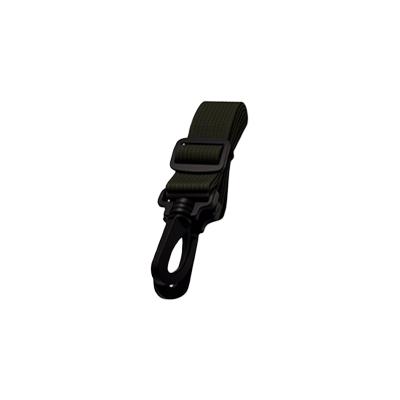

Accessories Included
Night Vision Imaging Views
Explore PVS-14 imaging examples with white phosphor and green phosphor image intensifier tubes.

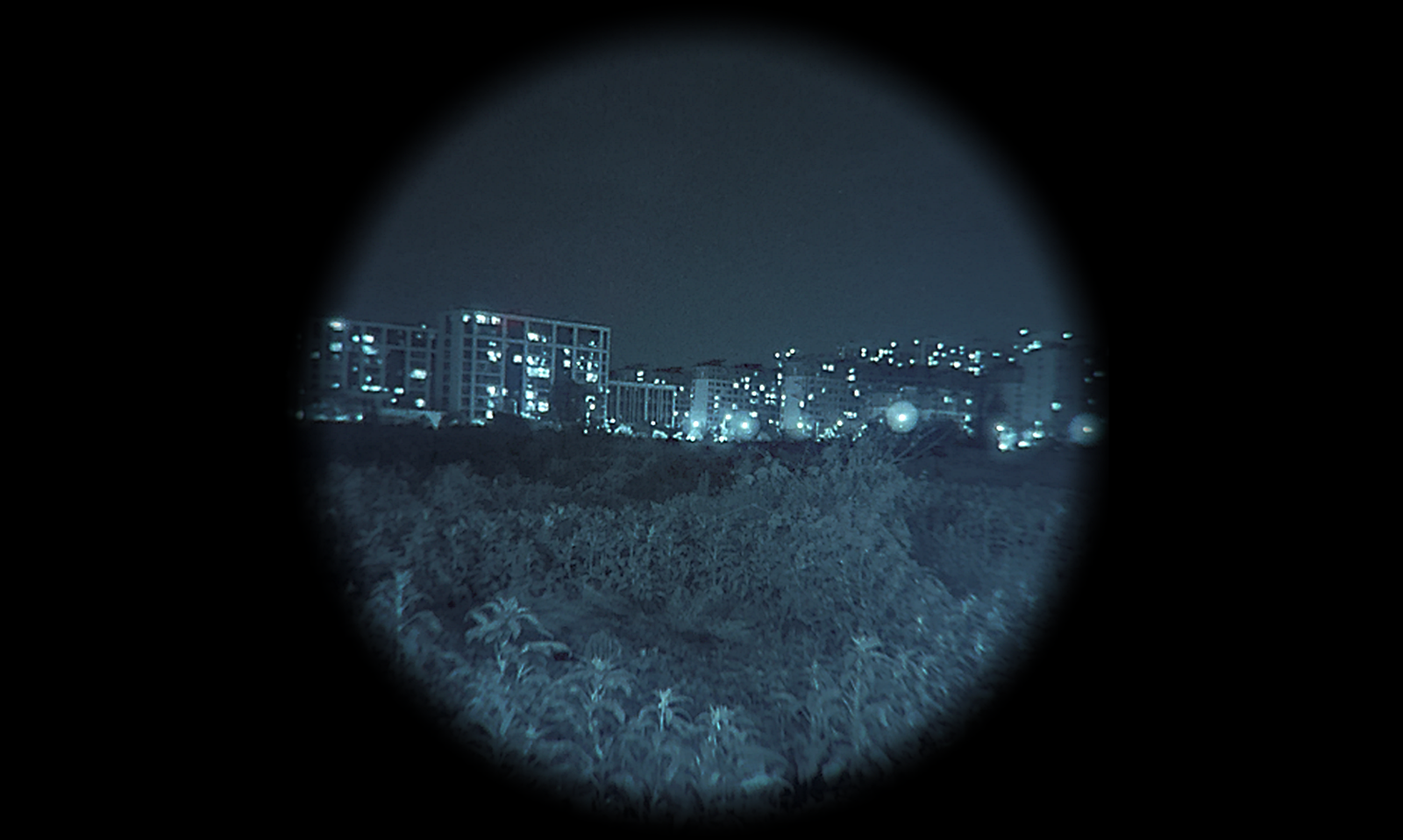

White Phosphor IIT
A white phosphor imaging example showing the scene in monochrome tones.

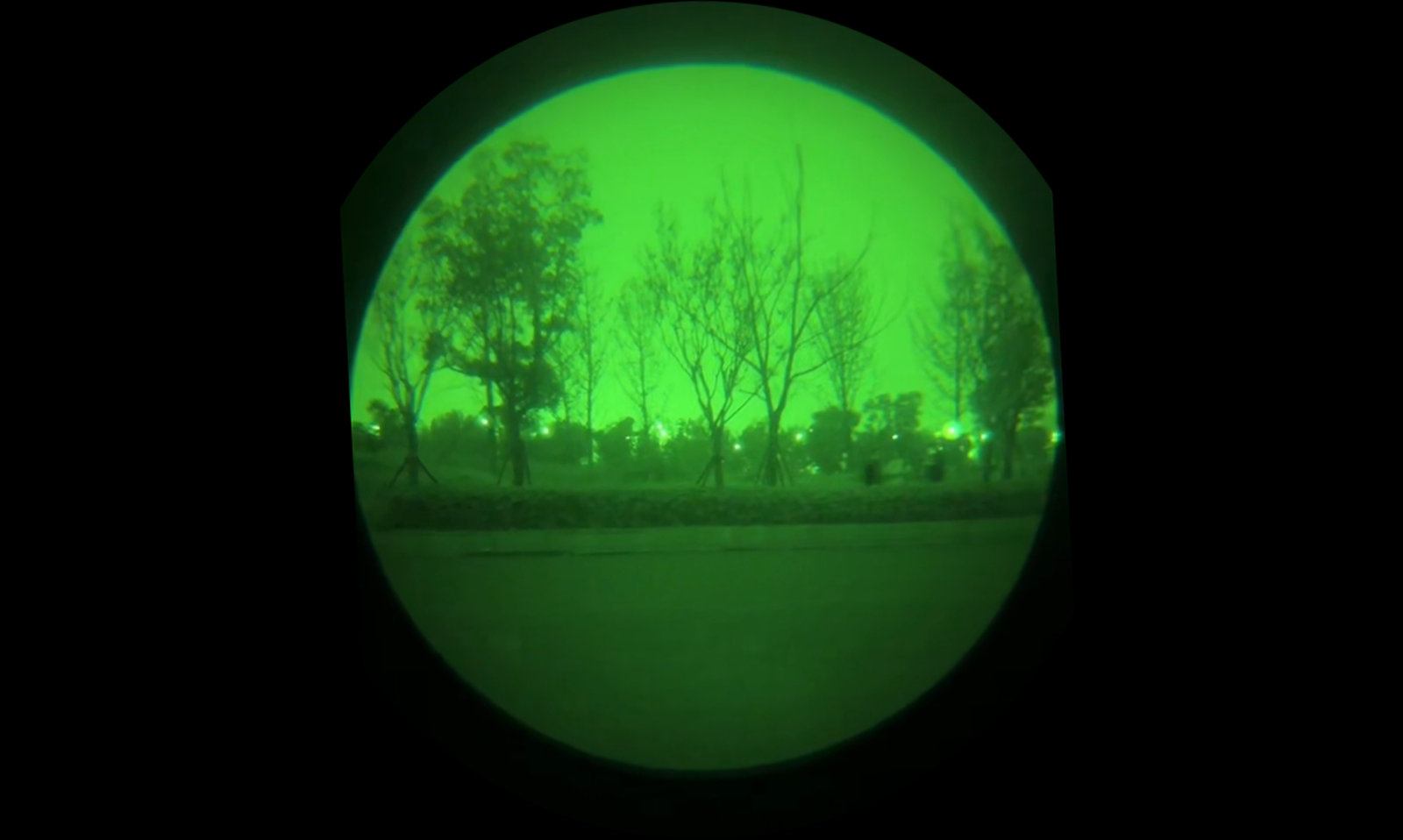

Green Phosphor IIT
A green phosphor imaging example showing the scene in traditional green tones.
