SCP-3000A Ø30 H25.4mm/1" 0MIL PIC
Our new Hunting Series of mounts - offering a more attractive and lightweight alternative to the ISMS series of scope mounts.
The SCP-3000 is designed for use on Picatinny rails and features two classic rings. The SCP-series of mounts can also be rotated for left or right handed shooters, and feature two separate side clamps.
0 MIL/0 MOA
Height: 25.4 mm/1”
Clearance: 3.4 mm/.133" (from the bottom of the tube to bridge of the mount body)
Length: 108 mm/4.25”
Weight: 133 g/4.7 oz
10-degree wedge included

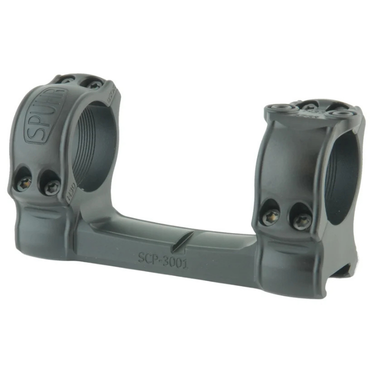

SCP-3001 Ø30 H30mm/1.18" 0MIL PIC
Our new Hunting Series of mounts - offering a more attractive and lightweight alternative to the ISMS series of scope mounts.
The SCP-3001 is designed for use on Picatinny rails and features one classic ring and one interface ring, which can be rotated as to position the interface/accessory in either the 12-o'clock or 3-o'clock position. The SCP-series of mounts can also be rotated for left or right handed shooters, and feature two separate side clamps.
0 MIL/0 MOA
Height: 30 mm/1.18”
Clearance: 8 mm/.314" (from the bottom of the tube to bridge of the mount body)
Length: 108 mm/4.25”
Weight: 147 g/5.2 oz
10-degree wedge included

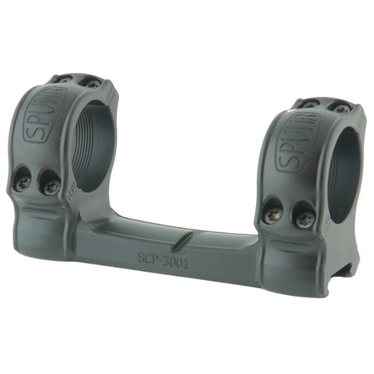

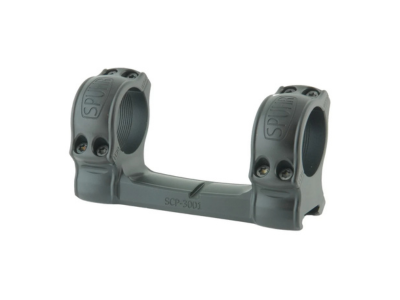

SCP-3001A Ø30 H30mm/1.18" 0MIL PIC
Our new Hunting Series of mounts - offering a more attractive and lightweight alternative to the ISMS series of scope mounts.
The SCP-3001 is designed for use on Picatinny rails and features two classic rings. The SCP-series of mounts can also be rotated for left or right handed shooters, and feature two separate side clamps.
0 MIL/0 MOA
Height: 30 mm/1.18”
Clearance: 8 mm/.314" (from the bottom of the tube to bridge of the mount body)
Length: 108 mm/4.25”
Weight: 145 g/5.1 oz
10-degree wedge included

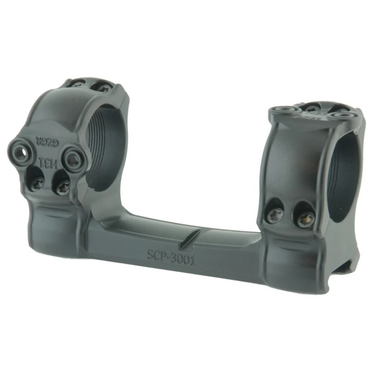

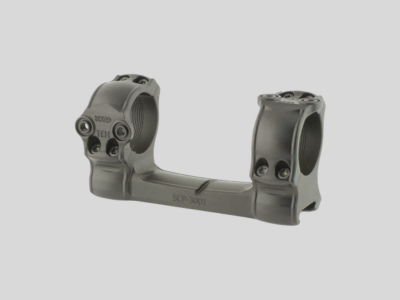

SCP-3001D Ø30 H30mm/1.18" 0MIL PIC
Our new Hunting Series of mounts - offering a more attractive and lightweight alternative to the ISMS series of scope mounts.
The SCP-3001 is designed for use on Picatinny rails and features two interface rings, which can be rotated as to position the interface/accessory in either the 12-o'clock or 3-o'clock position. The SCP-series of mounts can also be rotated for left or right handed shooters, and feature two separate side clamps.
0 MIL/0 MOA
Height: 30 mm/1.18”
Clearance: 8 mm/.314" (from the bottom of the tube to bridge of the mount body)
Length: 108 mm/4.25”
Weight: 148 g/5.2 oz
10-degree wedge included

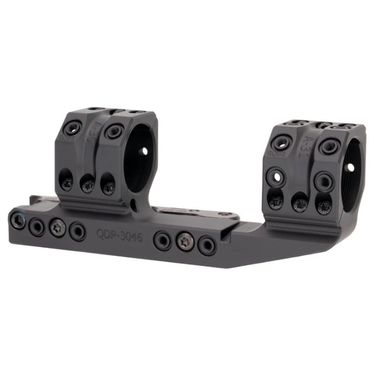

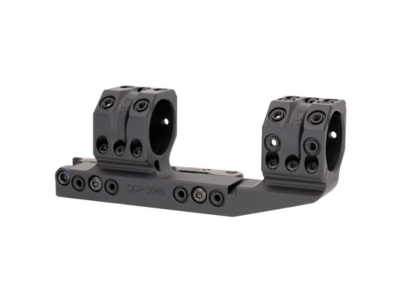

QDP-3046 Ø30 H34mm/1.35" 0MIL QDP
Quick detachable cantilever mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body. Allows the scope to be mounted 40 mm/1.57” farther forward than with a non-cantilever mount.
0 MIL/MOA
Height: 34 mm/1.35”
Length: 151 mm/5.94” (mount body only)
Weight: 268 g/9.5 oz
10-degree wedge included
Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of 2021 QDP arms are provided with golden bronze slide locks for minimized friction. As of fall 2023, rear top covers will no longer feature alignment grooves.

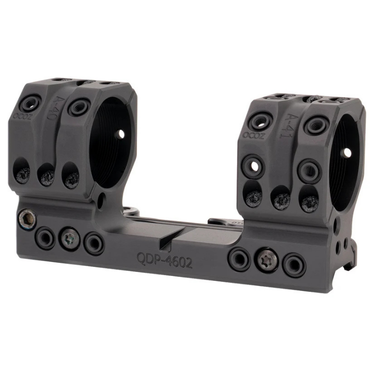

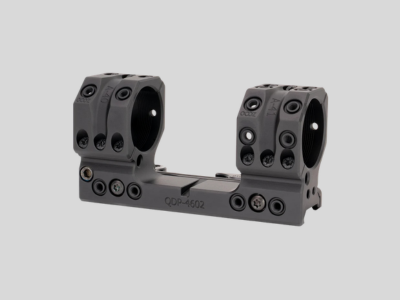

QDP-4602 Ø34 H38mm/1.5" 6MIL QDP
Quick detachable mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body.
Height: 38 mm/1.5”
Length: 121 mm/4.76” (mount body only)
Weight: 267 g/9.4 oz
10-degree wedge included
Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of 2021 QDP arms are provided with golden bronze slide locks for minimized friction.

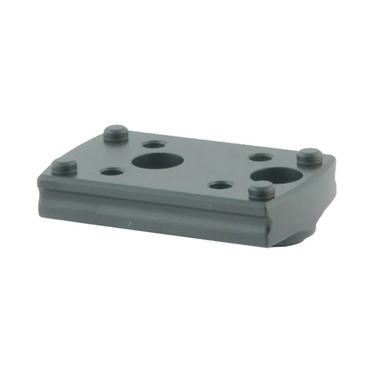

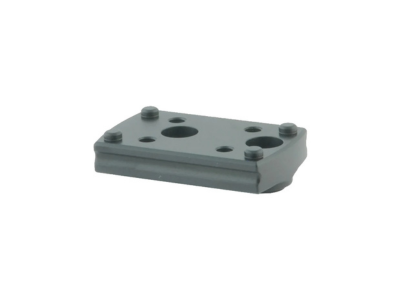

H-0009 DeltaPoint Hunting Interface
Interface for attaching a Leupold DeltaPoint or DeltaPoint PRO to Hunting Series mounts and rings. Includes screws.
The H-0009 footprint also matches the following, though screw head sizing may vary:
- Firepoint
- Tasco Optima
- Trijicon RedDot
- Some Shield Mini Sight, JPoints, and US Optics MCRS
Weight: 16 g/0.6 oz
As the H-series of accessories are designed for our Hunting Series the finish is slightly glossier than that of the A-series versions and the interface height is 2 mm higher (see third picture for comparison).
Note: Will also fit ISMS mounts and rings

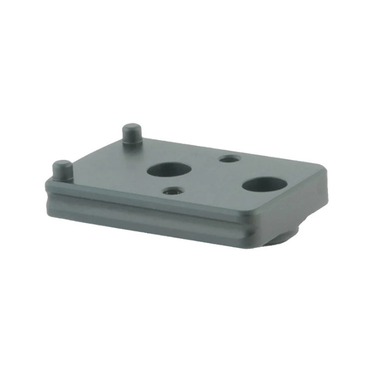

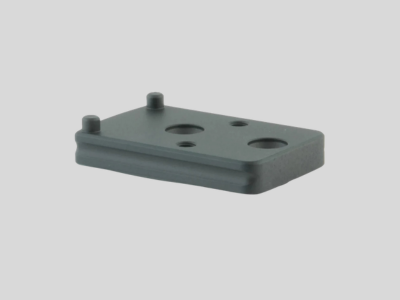

H-0010 Trijicon RMR Hunting Interface
Interface for attaching Trijicon RMR Type 1 and 2 and Trijicon SRO to Hunting Series mounts and rings. Includes screws.
The H-0010 footprint also matches the following, though screw sizing may vary:
•Trijicon RMR
• Trijicon SRO
• Holosun HS407C
• Holosun HS507C
Height: 9.5 mm/.374"
Weight: 23 g/0.8 oz
As the H-series of accessories are designed for our Hunting Series the finish is slightly glossier than that of the A-series versions and the interface height is slightly higher (see third picture for comparison).
Note: Will also fit ISMS mounts and rings. Please note that the two pins are designed to be used together with the included shim plate - if the shim plate is left out the pins may bottom out in sight.

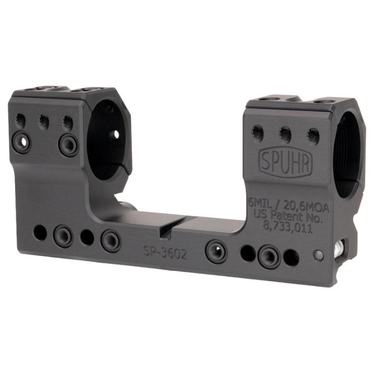

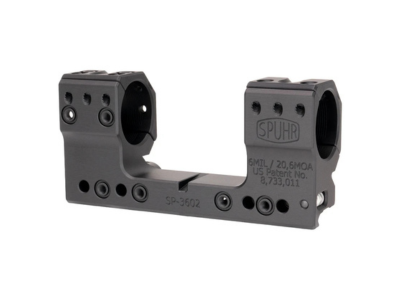

SP-3602M Ø30 H38mm/1.5" 6MIL PIC, MIL
Features a two-piece hardened steel clamps.
6 MIL/20.6 MOA
Height: 38 mm/1.5"
Length: 126 mm/4.96
Weight: 274 g/9.7 oz
10-degree wedge included
Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of fall 2023, rear top covers will no longer feature alignment grooves.

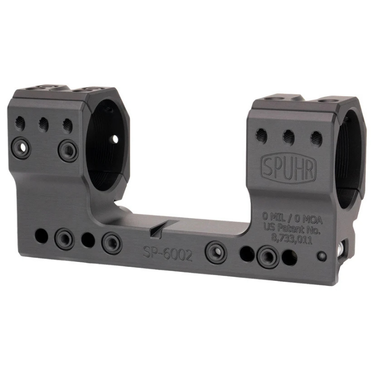

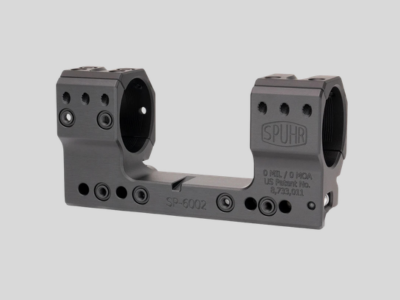

SP-6002M Ø36 H38mm/1.5" 0MIL PIC, MIL
Features a two-piece hardened steel clamps.
0 MIL/0 MOA
Height: 38 mm/1.5”
Length: 128 mm/5.04”
Weight: 226 g/8 oz
10-degree wedge included
Note: The SP-6002 went through a re-design during 2020. The updated design has been shortened 11 mm and the mount body was fitted with an integrated bubble level. Gen1 & Gen2 versions use the A-0072 side clamp, whereas the current design use the A-0065.
Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of fall 2023, rear top covers will no longer feature alignment grooves.

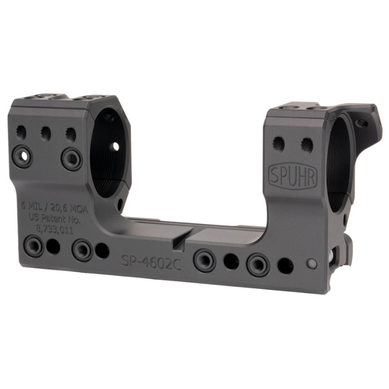

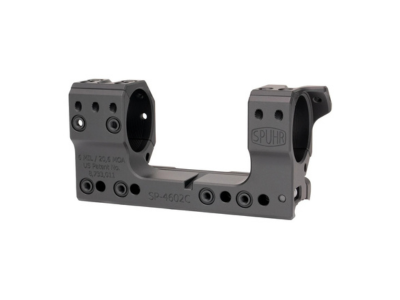

SP-4602CM Ø34 H38mm/1.5" 6MIL PIC Gen3, MIL
Features a two-piece hardened steel clamps.
6 MIL/20.6 MOA
Height: 38 mm/1.5"
Length: 126 mm/4.96
Weight: 274 g/9.7 oz
10-degree wedge included
Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of fall 2023, rear top covers will no longer feature alignment grooves.

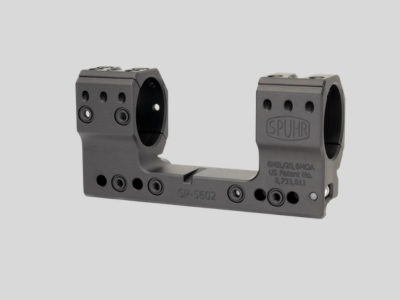

SP-5602 Ø35 H38mm/1.5" 6MIL PIC
6 MIL/20,6 MOA
Height: 38 mm/1.5”
Length: 126 mm/4.96”
Weight: 268 g/9.5 oz
10-degree wedge included
Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of fall 2023, rear top covers will no longer feature alignment grooves.

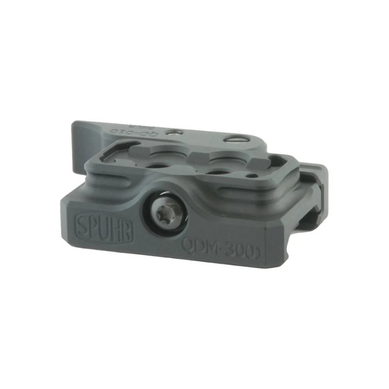

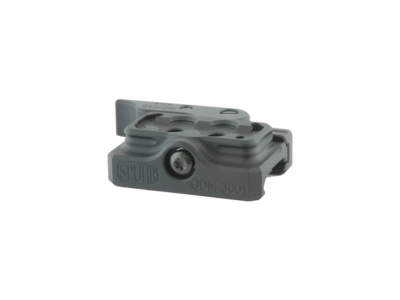

QDM-3001 MRO Mount
The worlds most rugged Trijicon MRO mount. Our unique design incorporates recoil lugs front and aft allowing for a more secure hold on the sight.
Attaches to any Picatinny or STANAG NATO rail with the use of an adjustable QDP lever.
Height: 30 mm/1.18"
Weight: 65 g/2.3 oz
Note: Does not include a Trijicon sight.

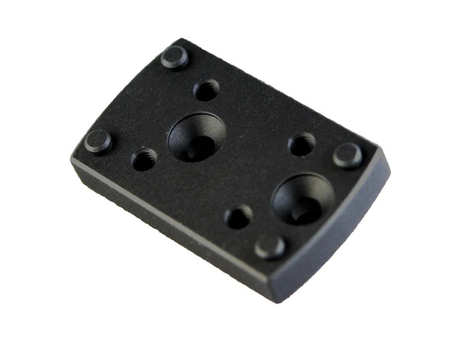

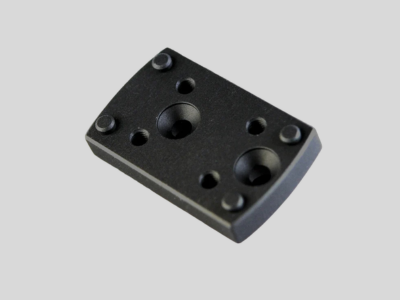

A-0009 DeltaPoint Interface
Interface for attaching a Leupold DeltaPoint to the scope mount. Includes screws.
The A-0009 footprint also matches the following, though screw head sizing may vary:
- Firepoint
- Tasco Optima
- Trijicon RedDot
- Some Shield Mini Sight, JPoints, and US Optics MCRS
Length: 41.5 mm/1.63”
Width: 25.5 mm/1.00”
Height: 7.0 mm/0.28”
Weight: 17 g/0.6 oz
Note: Will not fit Hunting Series mounts and rings - use H-0009 instead.

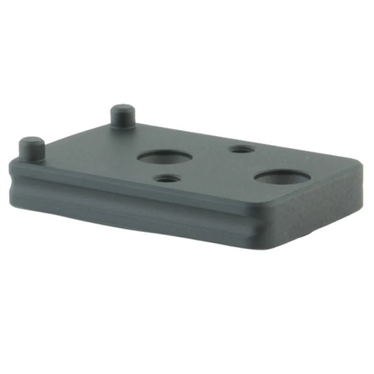

A-0010I Trijicon RMR Interface
Interface for attaching Trijicon RMR Type 1 and 2 and Trijicon SRO to an ISMS scope mount. Includes shim plate and screws.
The A-0010I footprint also matches the following, though screw sizing may vary:
• Trijicon RMR
• Trijicon SRO
• Holosun HS407C
• Holosun HS507C
• Holosun HS508T
Height: 9.5 mm/.374"
Weight: 21 g/0.7 oz
Note: Will not fit Hunting Series mounts and rings - use H-0010 instead. If you have a Trijicon RCR - use A-0243 instead. Please note that the two pins are designed to be used together with the included shim plate - if the shim plate is left out the pins may bottom out in sight.

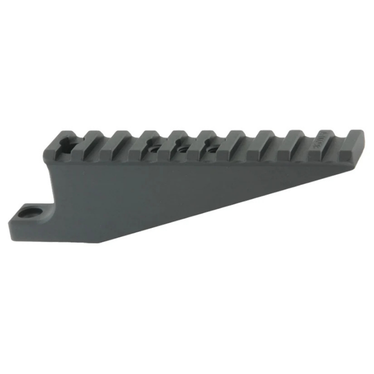

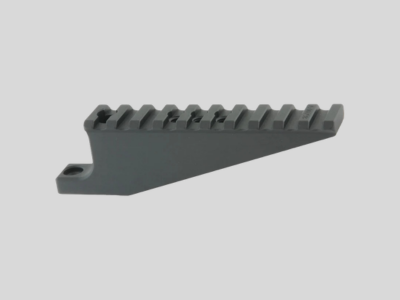

A-0029B Wilcox RAPTAR Adapter, High
Interface for attaching Wilcox RAPTAR, RAPTAR-S (Gen2,) RAPTAR Lite ES or SilencerCo RADIUS laser range finder to ISMS scope mount or spotting scope ring. Includes screws.
Height: 35 mm/1.38”
Length: 123 mm/4.86”
Length: 104 mm/4.095” (Picatinny Rail)
Weight: 59 g/2.1 oz
Note: For direct mounting the Gen1 RAPTAR-S without Picatinny clamp/riser use the A-0029C Gen1 Wilcox RAPTAR-S Adapter.

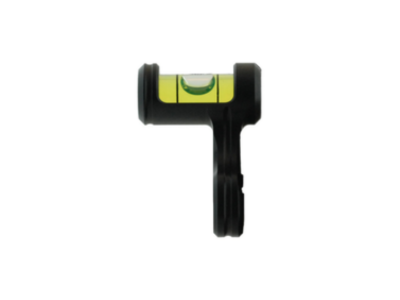

A-0119 Bubble Level Assembly
External Bubble Level Assembly designed to attach forward on the scope mount body or ring. Perfect solution for shooters who are unable to focus on the built-in level in the standard ISMS series or who has a model without a built-in level.
The angle of the assembly can be adjusted using two set screws. Includes screws.
Width: 29.5 mm/1.16”
Height: 41.6 mm/1.64”
Length: 32.1 mm/1.25”
Weight: 20 g/0.7 oz
