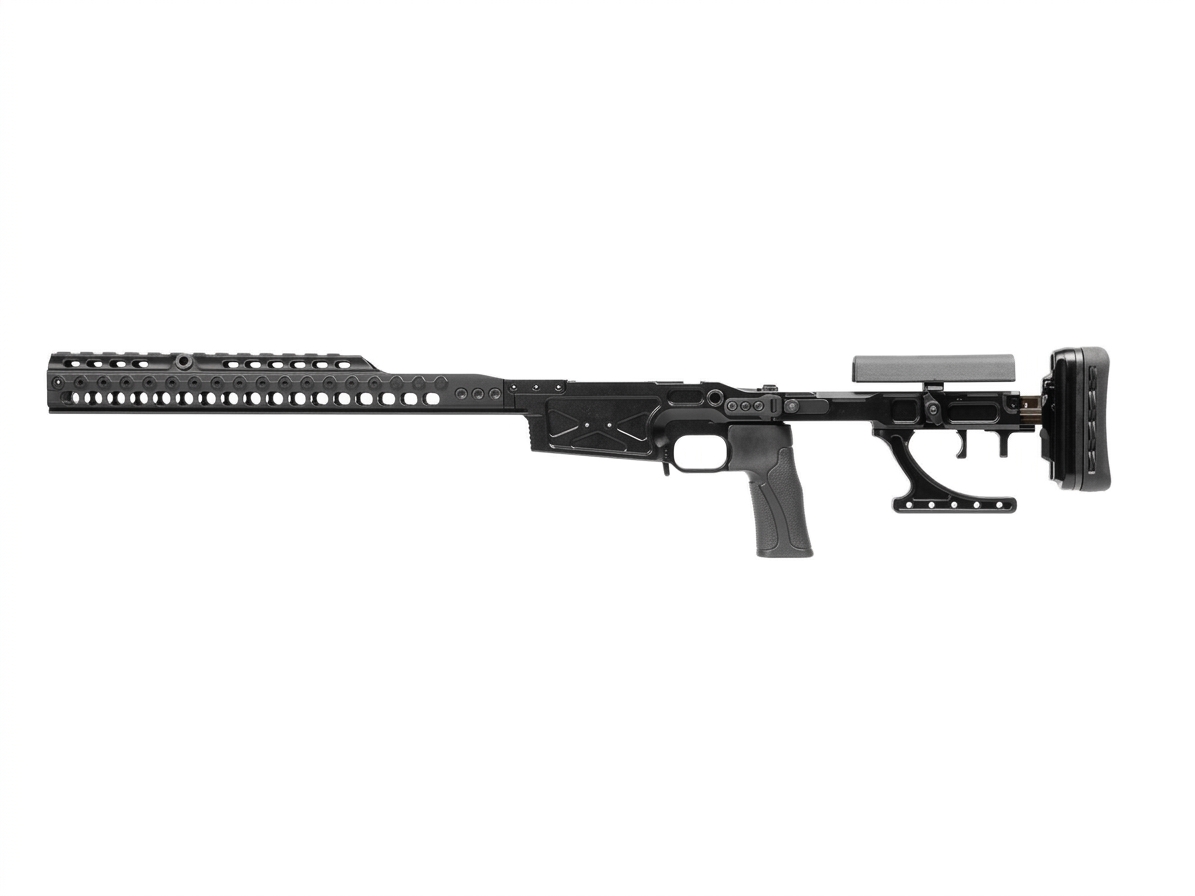

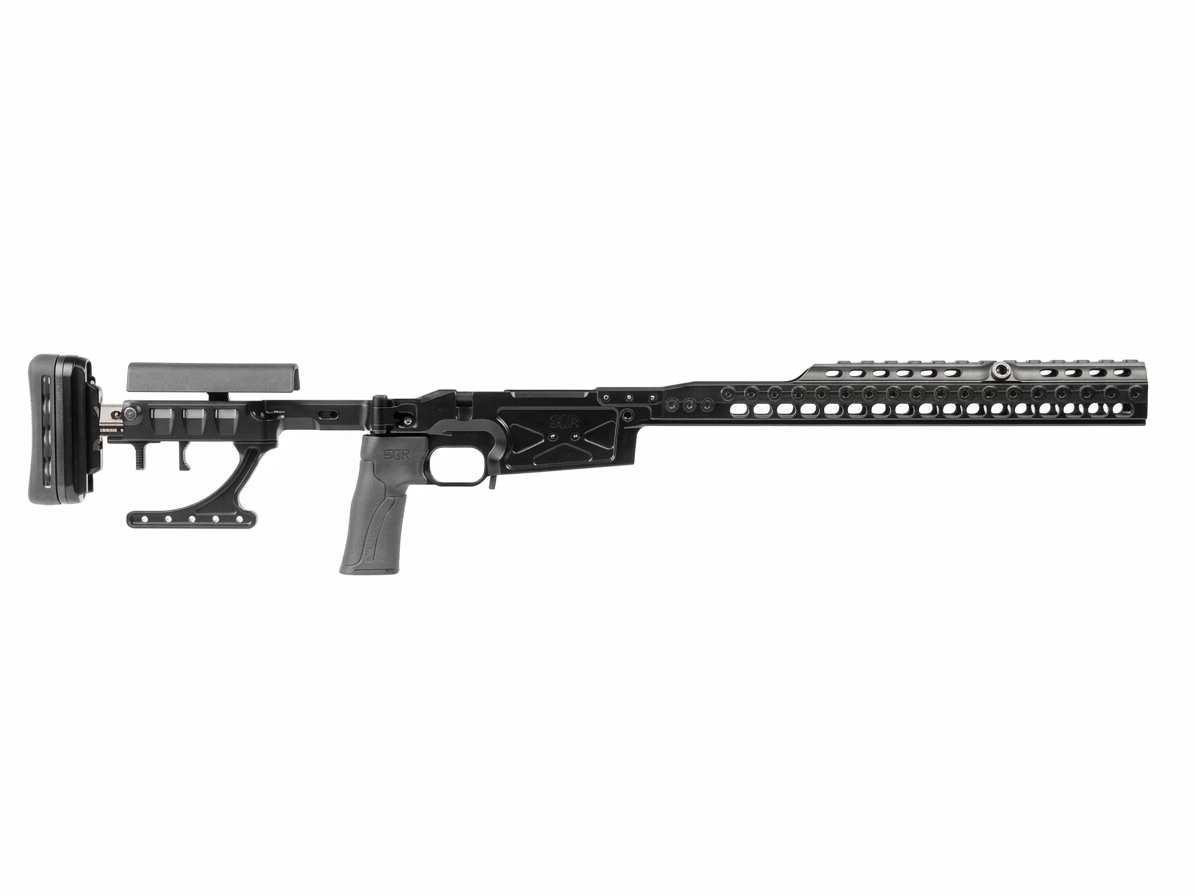

The Spuhr® Ideal Chassis System™ (SICS™) CH000101 is a modular chassis system optimized for Remington 700 Short Action clones. Constructed from aircraft-grade aluminum alloy, it provides rigid support for the barreled action to help improve accuracy. The system features a folding stock, tool-free adjustments for length of pull and recoil pad height, an adjustable cheek piece, and a 16" Spuhr Interface™ forend with an integrated ARCA Swiss rail.
Product Features
- Modular Chassis System Designed to provide rigid support for the barreled action for improved accuracy.
- Aircraft-Grade Aluminum Alloy Constructed from aircraft-grade aluminum alloy.

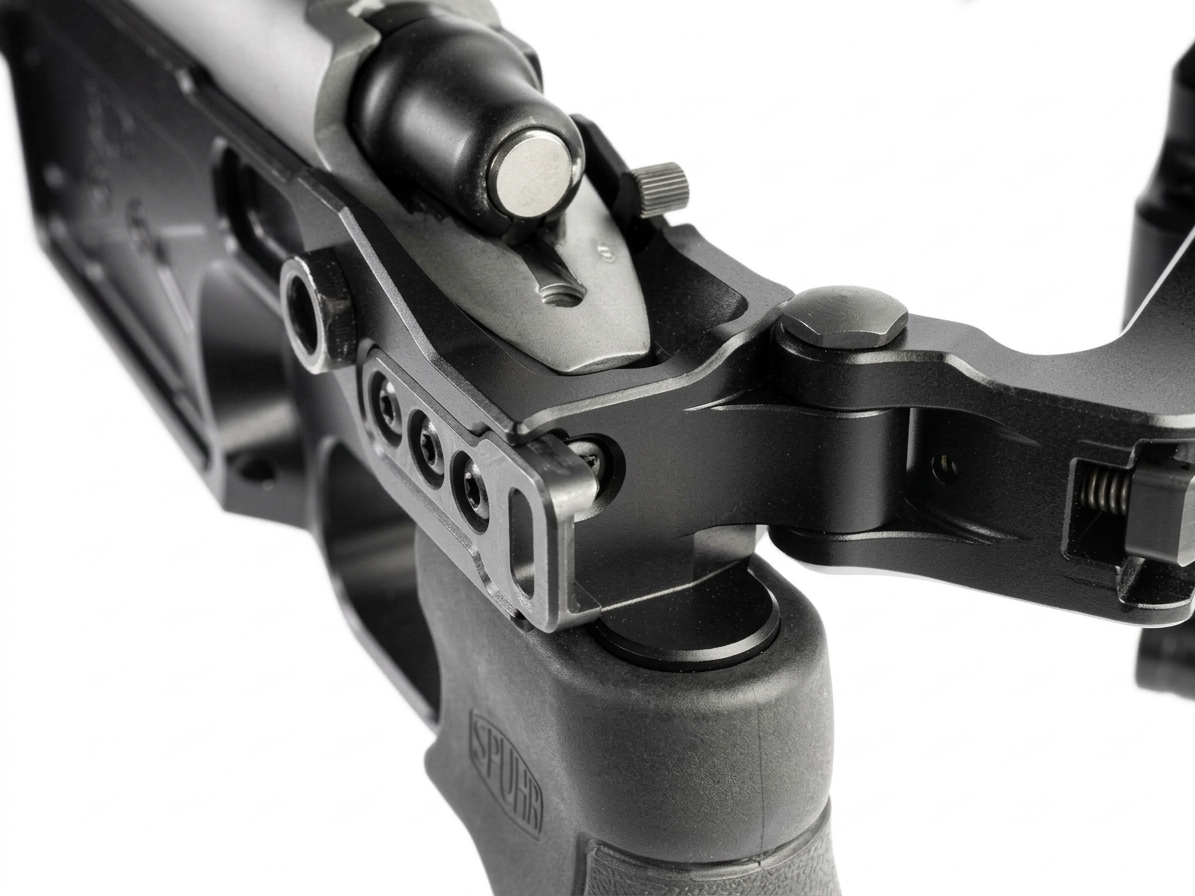

- Folding Stock Assembly Features a folding stock assembly with adjustment for solid lockup.

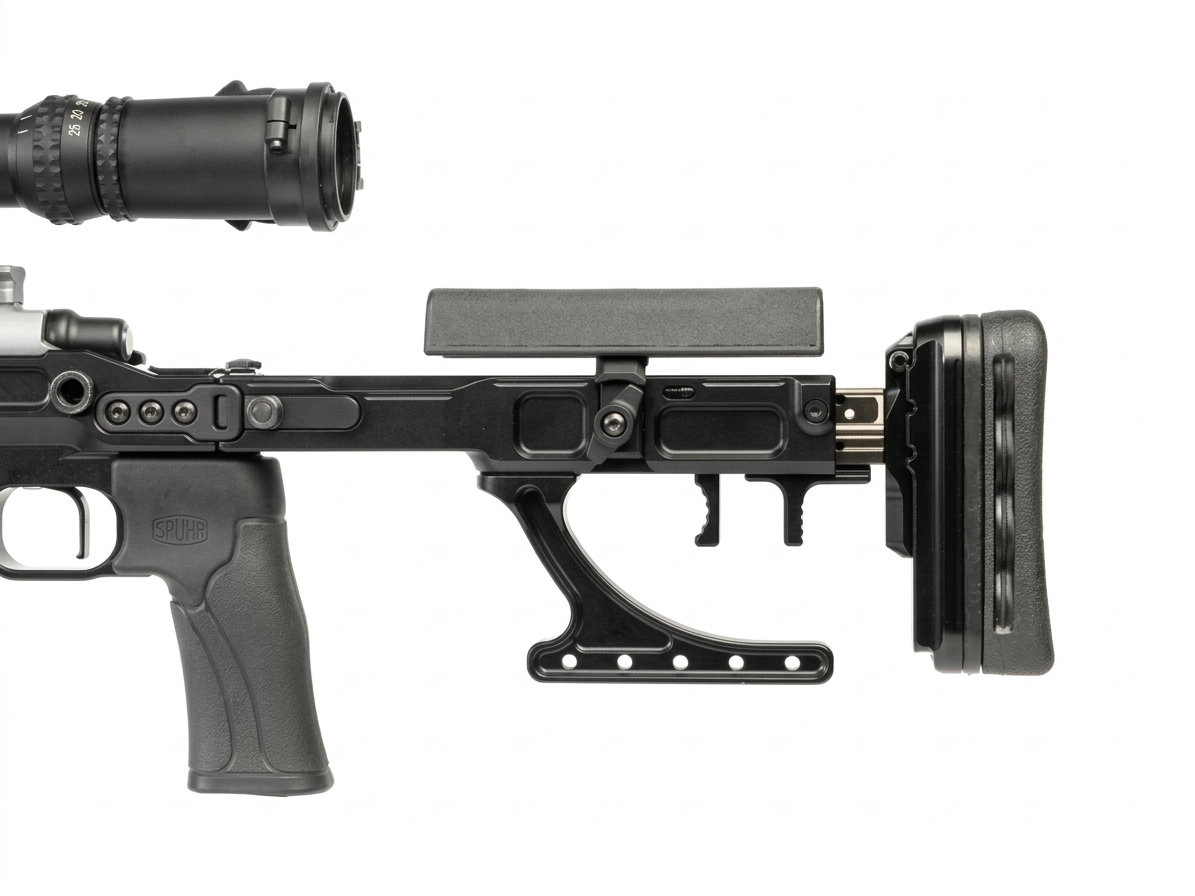

- Quick-Adjustable Length of Pull Tool-free adjustment with 50 mm / 1.97" of travel.

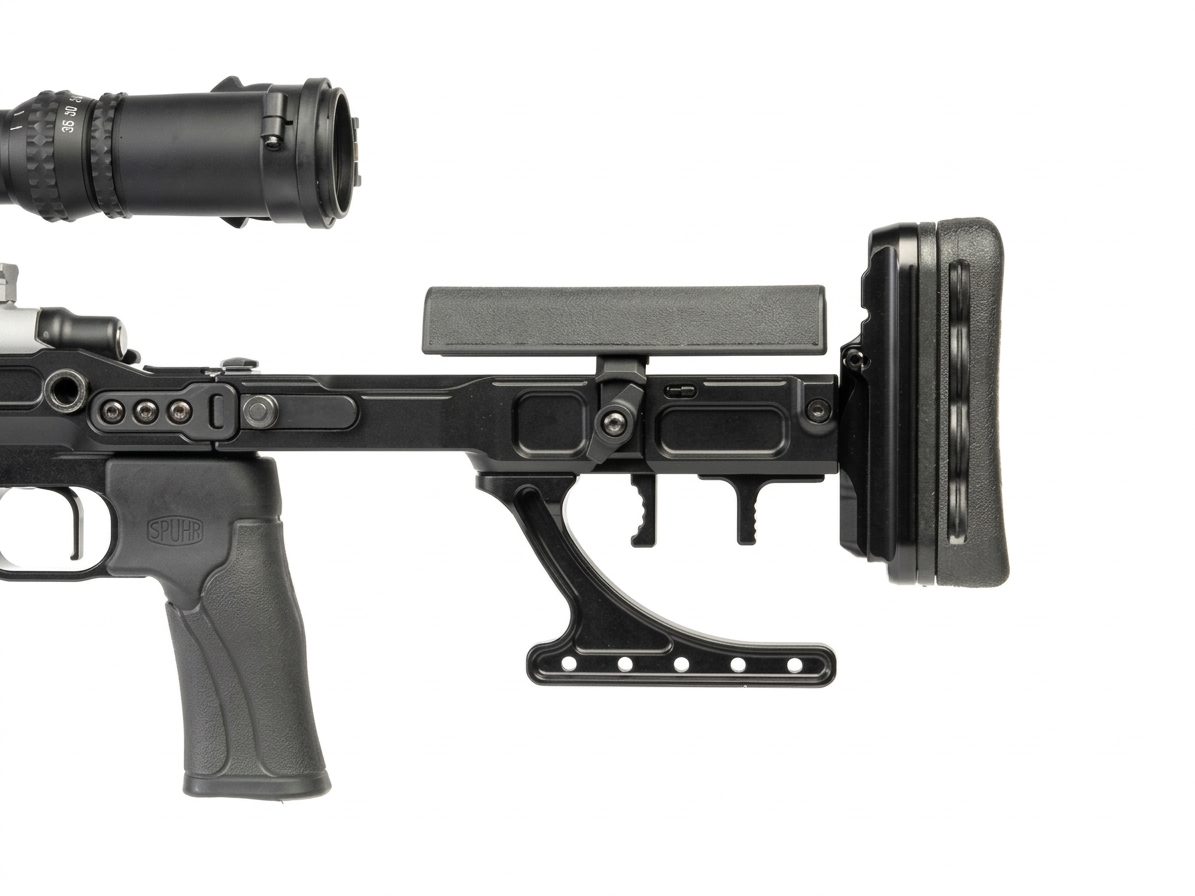

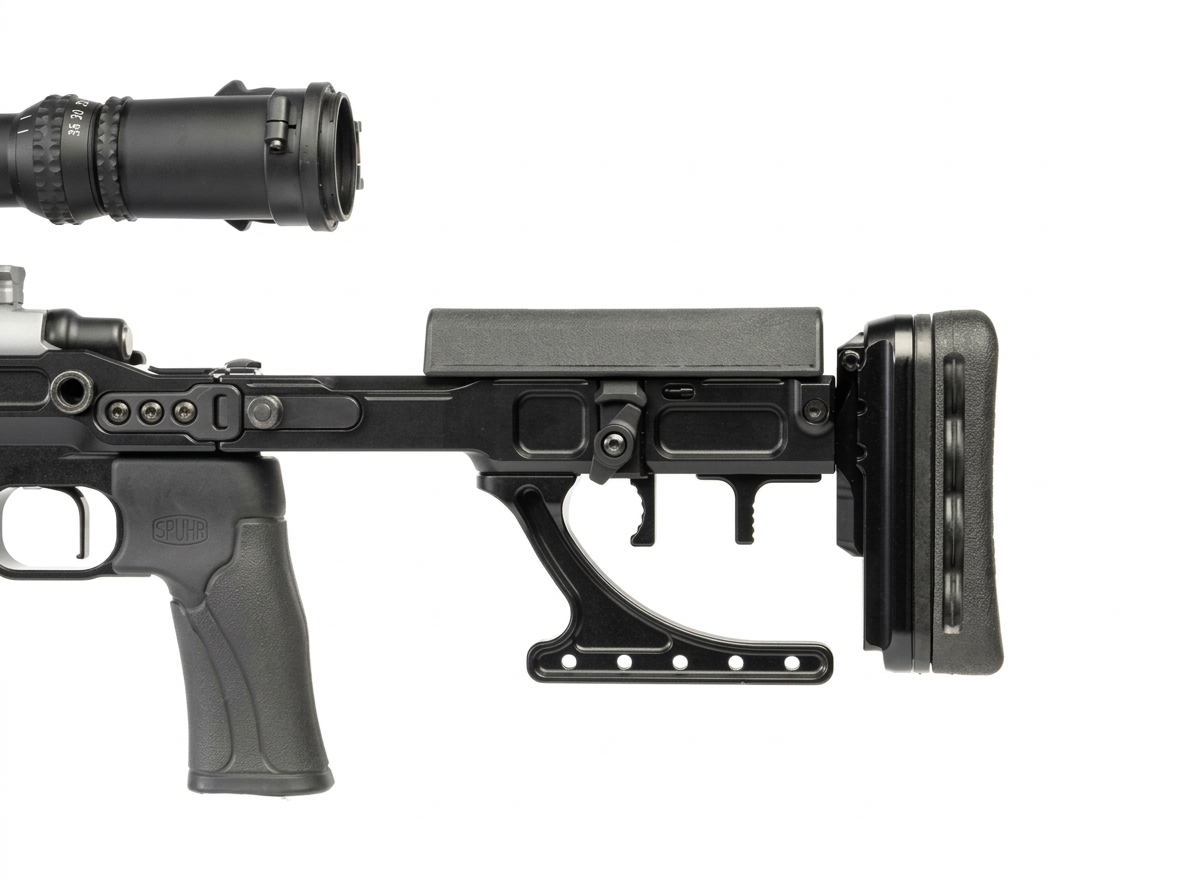

- Adjustable Recoil Pad Height Tool-free adjustment with 32 mm / 1.25" of travel for proper eye relief when changing shooting positions.
- Adjustable Cheek Piece Height- and length-adjustable to help customise the fit.

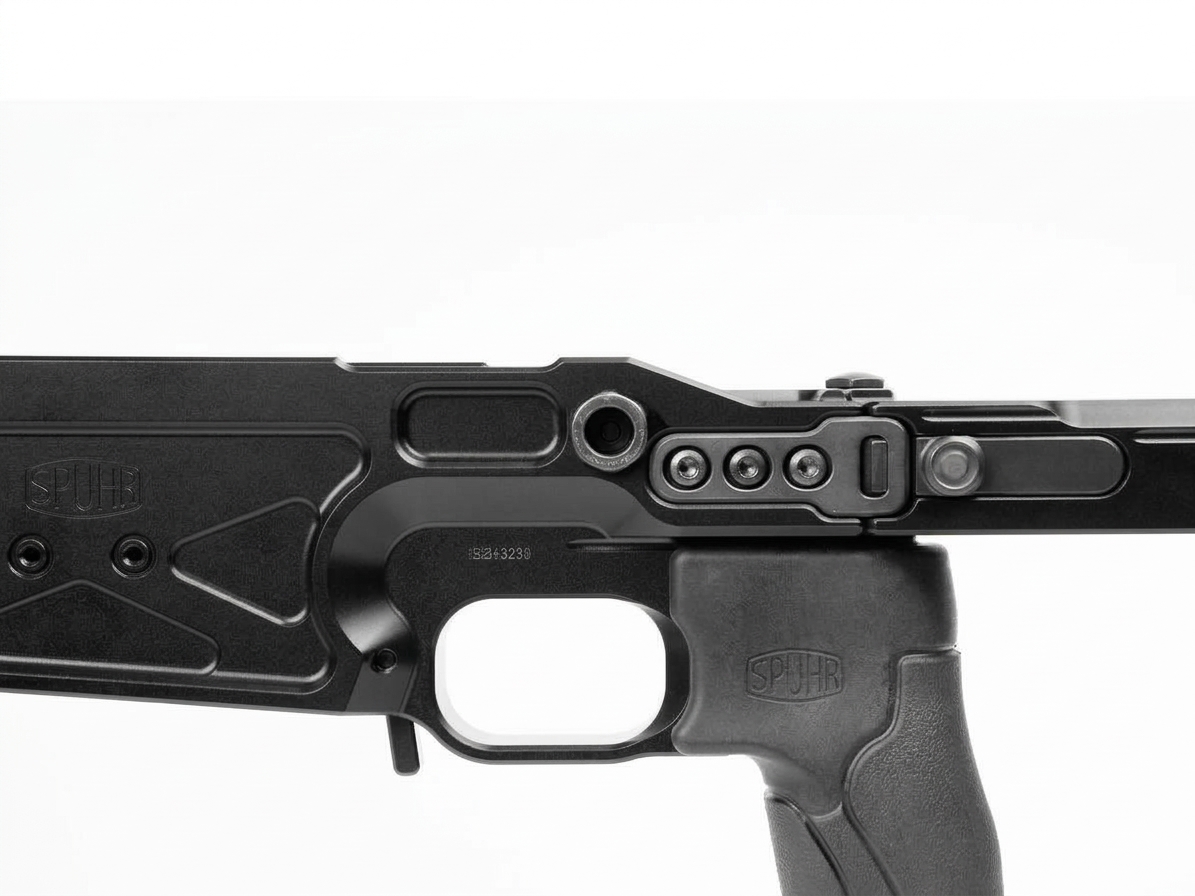

- Adjustable Pistol Grip Proprietary length-adjustable, AR-compatible pistol grip with 8 mm / 0.32" of travel.
- 16" Spuhr Interface™ Forend Features Spuhr Interfaces™ along the top for mounting night vision devices, illuminators, and other compatible accessories.
- Integrated ARCA Swiss Rail Built into the forend for compatible mounting solutions.
- QD Sling Cups Integrated into the forend.
- AICS Pattern Magwell Compatible with AICS-pattern magazines; not designed for AI AX magazines.
- Built-In Barricade Stop Integrated into the chassis design.
- Heavy Varmint Barrel Compatibility The 16" forend accommodates barrel profiles up to Heavy Varmint, with a maximum barrel diameter at the shank of 32 mm / 1.25".
Technical Specifications
| SKU | CH000101 |
|---|---|
| Product Name | Spuhr® Ideal Chassis System™ (SICS™) |
| Action Compatibility | Remington 700 Short Action clones |
| Length | 975 mm / 38.4" |
| Length Folded | 685 mm / 27.0" |
| Length of Pull | 330 mm / 13" minimum |
| LOP Adjustment Travel | 50 mm / 1.97" |
| Recoil Pad Height Adjustment | 32 mm / 1.25" |
| Width | 48.5 mm / 1.9" |
| Height | 180 mm / 7.1" |
| Weight | 2.37 kg / 5.22 lb |
| Forend Length | 406 mm / 16.0" |
| Maximum Barrel Diameter at Shank | 32 mm / 1.25" |
| Color | Black |
| Construction | Aircraft-grade aluminum alloy |
| Magazine Pattern | AICS pattern; not compatible with AI AX magazines |
Compatibility Note
Optimized for Remington 700 Short Action clones. Also fits short actions from BAT Machine, Curtis Custom, KS Arms, Surgeon Rifles, Terminus, and Zermatt Arms/Bighorn Arms. Low bolt stops on KS Arms actions may require modification for clearance. Actions with a 60-degree bolt throw may prevent the stock from folding over a closed bolt. Clearance between the front of the action and the handguard is approximately 130 mm / 5.11", and a 38 mm / 1.5" high mount may be required.
